Modular
Forklift Scale
Simple - Accurate - Rugged -
Reliable
All SEKO Forklift Scales are
Nominally 99.9% Accurate (+/- 0.1% Error - 1 Pound Error per Thousand
Pound Load)
Technical
Information
SEKO
Scale Easy Installation
Generic Installation Guide
Nissan 50 Forklift
Example
|
SAFETY
WARNING!
- Forks
and Scales are HEAVY!
- Think
ahead. - Get
help. - Pay
Attention!
- Do
not put hands, feet or other body parts under the forks or scales.
Please View the SEKO
Video
Installation Demonstrations on the Internet
(Links on this page Strongly
Recommended!)
|
This Installation Guide provides only
general suggestions.
You are responsible for safe work
practices and sound judgment
for lifting and maneuvering heavy objects.
Be careful and thoughtful before
proceeding.
Mechanical Installation of
SEKO
Scales should take less than ten
minutes total time.
Installation of the Class II
SEKO
Scales with up to 48 inch forks
can usually be accomplished by one experienced worker.
The videos which accompany this guide were filmed by the worker doing
the installation.
The video installation was the first installation ever attempted by the
worker.
An experienced worker will note the errors experienced in this learning
process.
(Feel free to be amused at the in-expert moves.)
This "first-time
installation by an inexperienced worker" took less than ten minutes,
total.
Installation Guide
(PDF Download 323kb
Park the forklift
in a clear, flat space.
Put the gearbox in
neutral
Set and lock the
parking brake.
Lower the carriage
to a safe working height, just off the ground.
(Repeat for each
fork)
Release the
positioner lock located at the top of the fork.
Slide the fork to
the center of the carriage.
Position the fork
over the center of the cutout on the bottom carriage rail.
Lift the fork tip
so that the bottom fork hook clears the carriage rail.
Lift the fork off
the top carriage rail.
Transfer fork to
ground.
(Repeat for each
fork)
Hook SEKO scale top
hook on top carriage rail.
Slide SEKO scale to
one side, engaging the SEKO
bottom hook on the bottom carriage rail.
Set positioner lock
located on top of the SEKO
scale module.
(Repeat for each
fork)
Raise the carriage
just off the ground so that the fork must be lifted about 1/2"
to 1" to hook to the SEKO fork mounting rails.
Raise a fork hooks
to the level of the SEKO
scale fork mounting rails and slide the fork

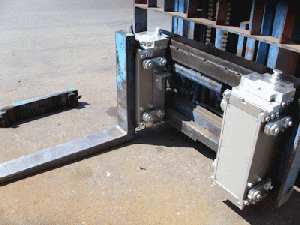

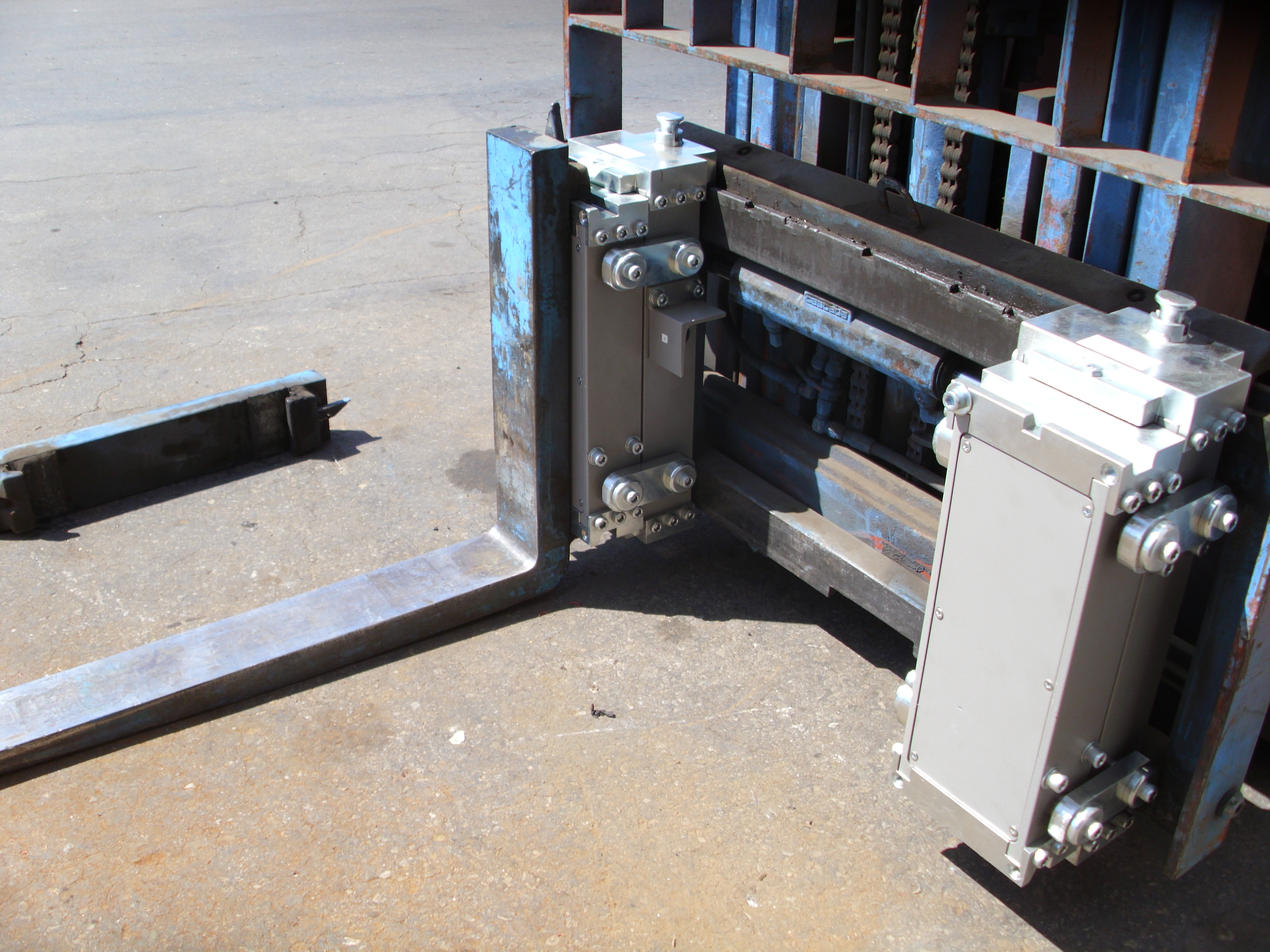

on to the SEKO scale.
Center the fork on
the SEKO
scale and engage the positioner lock.

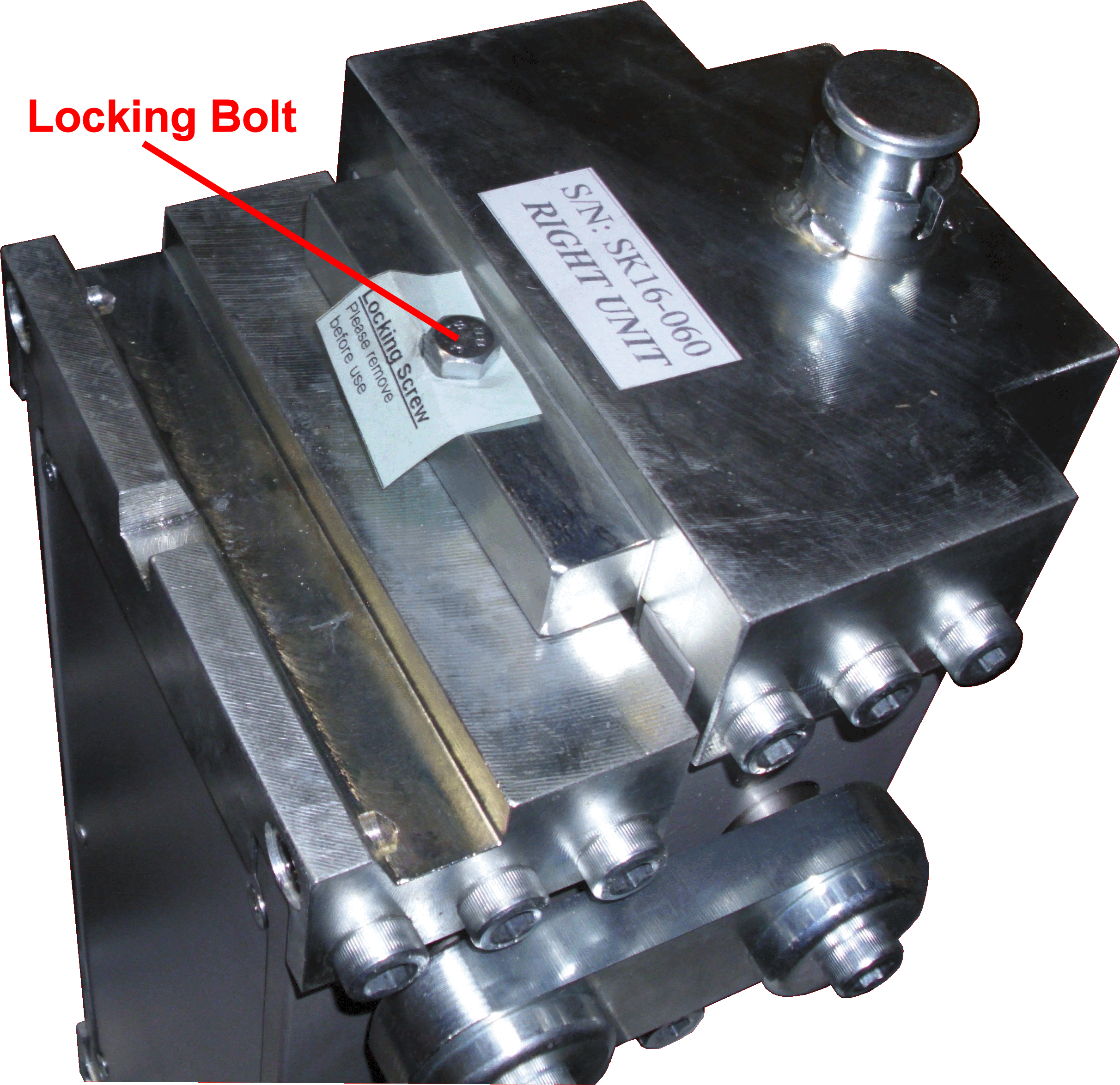

Remove the Shipping Locking Bolt
and Save Bolt for future shipping of weigh module.
This concludes
the installation of the SEKO
Scale and Fork on the forklift carriage.
The forks may be
repositioned as normal. Release the positioner lock.
Slide the SEKO
scale and fork to the desired position
Re-engage the positioner
lock.
Remove Scale and Replace Forks: (Video 4: 2:55
Minutes)
Video demonstrates rapid swap
capability using SEKO
modular Scale System. A truck breakdown requires only
about five minutes to transfer the scale system to another truck. Very
little production time is lost due to wait for mechanic assistance.
When
forks are removed, replace the Shipping Locking Bolts for travel.
